v0.4.0: Evidence.dev dashboard, improved experiment tracking
This release of Matrix includes a new data dashboard based on evidence.dev, a new pipeline submission process which groups experiment runs under their respective experiments and a scheduled daily run of the entire pipeline using a KG sample to get fast feedback on the stability of our pipeline with real data.

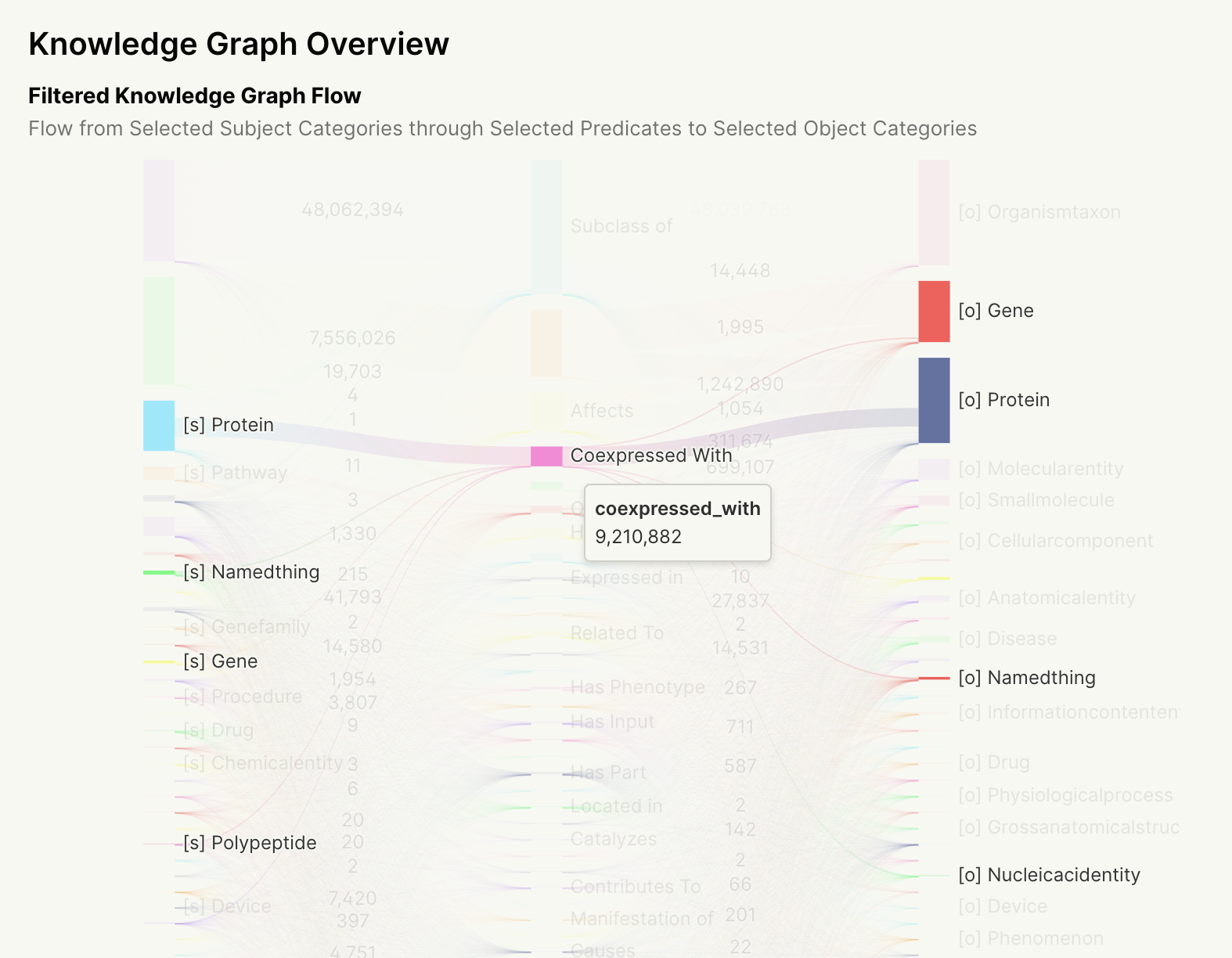

KG Dashboard
Graph connectivity overview
We added a new dashboard based on evidence.dev to enable us to share detailed insights into the makeup of our knowledge graphs. Each release of the KG is paired with a dashboard that shows metrics and visualisations about the structure of the KG.

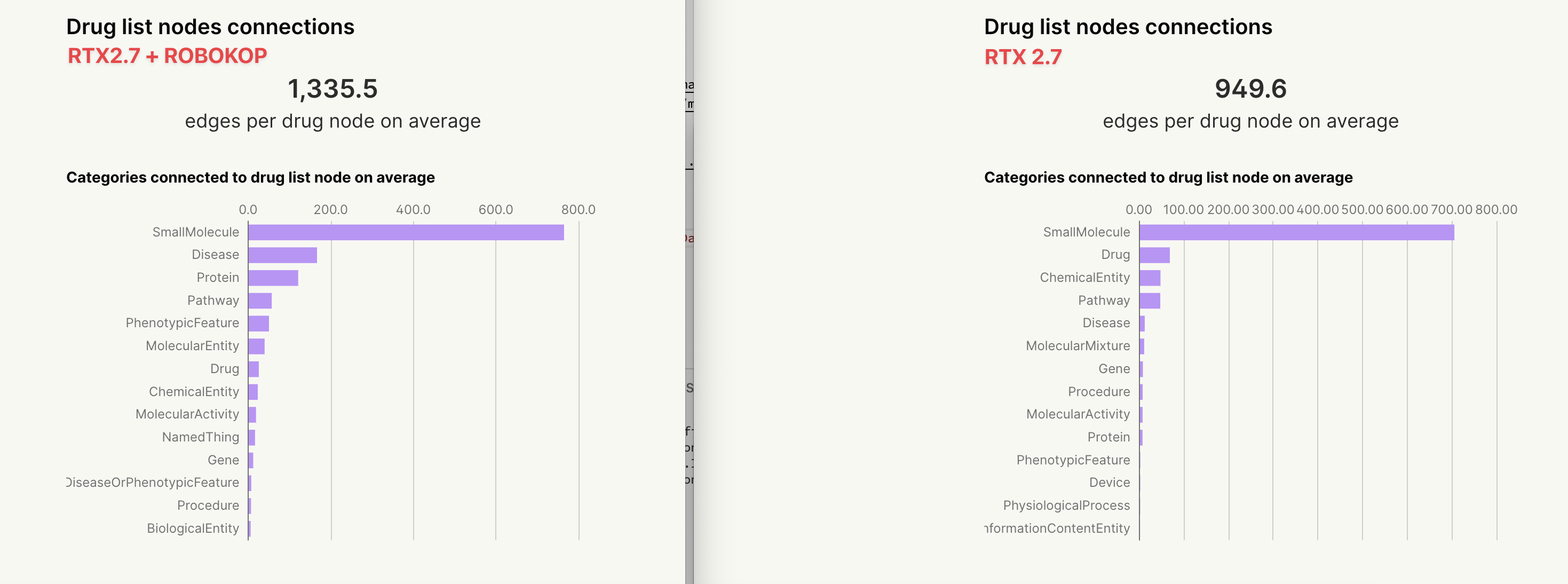

Quality Control Dashboard for our data releases
We started collecting quality control metrics for our data releases. Data build v0.4.3 for example shows that the number of diseases connected to drugs in the KG drastically increased when we added ROBOKOP as a data source.

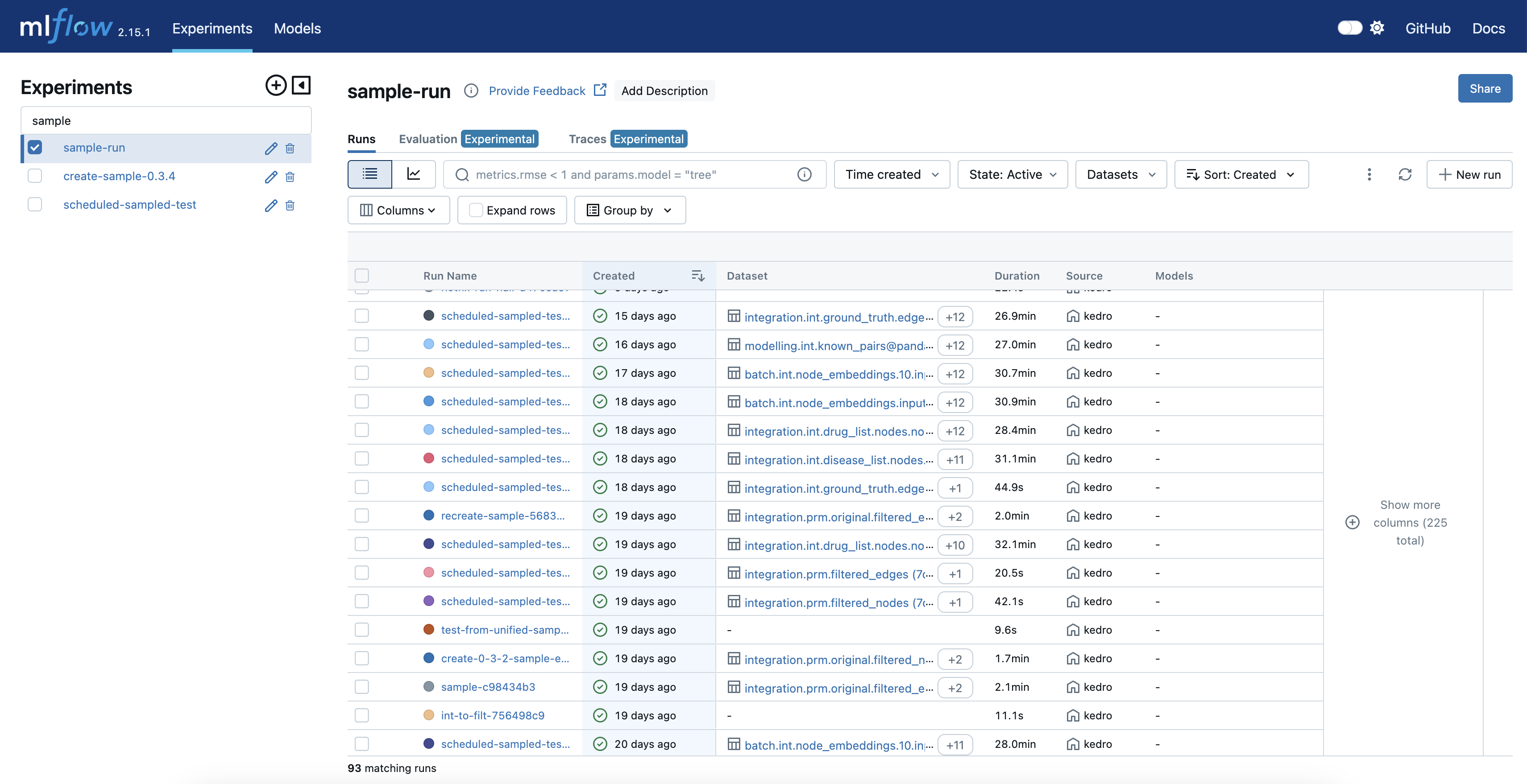

Pipeline Submission
We updated the pipeline submission process to group experiment runs under their respective experiments. This should make it easier to track the evolution of the pipeline over time. All runs of one experiment are bundled together in a single experiment run in the MLFlow UI. This ensures iterative debugging does not impede the visibility of what experiments have been run.
Scheduled Pipeline Runs with sample data
In an effort to increase our feedback velocity, we wanted to run the pipeline more regularly to know when integrated pieces may lead to issues. As with any complex system, a tradeoff needs to be found between the cost of running the pipeline and the benefits of the feedback. We decided to run the pipeline on a sample of the KG to get fast feedback on the stability of our pipeline with real data while avoiding the cost of running the pipeline on the entirety of the KG. This should lead to ~ 90% lower costs per run while still providing a good indicator of the pipeline's stability.
This includes two new workflows:
- the creation of the sample data whenever a new release is created.
- a scheduled workflow that runs the pipeline on the sample data every day at 5am GMT.
For more details, check the documentation on the sample environment.
Full Changelog
For the full changelog, see the GitHub release page
